Main Technique Data:

Working voltage: 12V – 24V AC/DC
Frequency: 433.92 MHZ/315Mhz(optional)
Supports all fixed and rolling codes.
Learn 600 codes per channel

1). Connect Receiver to 12V-24VAC/DC

2). When the power is initiated the LED will light for 1 second and the receiver is ready for instructions.

3). Press any button on the remote, if the code is learnt the LED will blink, then release the button on the
remote. Without any operation in 10 seconds, the LED will be extinguished and finish its learning status.

4). PROGRAMMING METHOD:
A. Press P1 once, the LED flashes once and the first channel (monostable) activates, Repeat Step 3).
B. Press P1 twice, the LED flashes twice and the second channel (monostable) activates, Repeat Step 3).
C. Press P1 three times, the LED flashes three times and the first channel (bistable) activates, Repeat Step 3).
D. Press P1 four times, the LED flashes four times and the second channel (bistable) activates, Repeat Step 3).

5). DELETING FUNCTION:
A. Deleting one code: Press P2 for approximately 3 seconds, then release button and the LED will light,
press the button you no longer require and the code will be deleted.
B. Deleting all codes: Hold and press P2 until the LED lights, release the button and the LED will go off,
all codes will have been deleted.

6). NOTE:
A. The data for rolling codes is relatively big and will take a little more time to operate the remote
B. If the same code is entered more than once, only the last code is memorized.

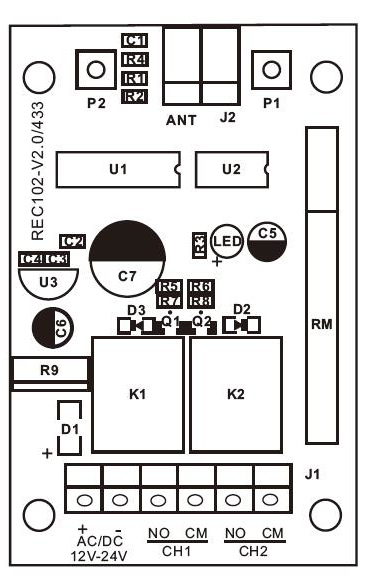

Diagram
