| working volt | 12v |
| working current | <=12mA |
| comment current | 0 |
| frequency deviation | +-75k |
| Oscillation resistance | under your requests |
| Transmitter distance | 50~100m |
| Frequency modulation | AM |
| chip | A.rolling code (HCS301,300,200 ect) B.learning code (1527,2240,HT6P20D ect) C.fixed code(2260,2260 ect) D.copy code(singlechip) |

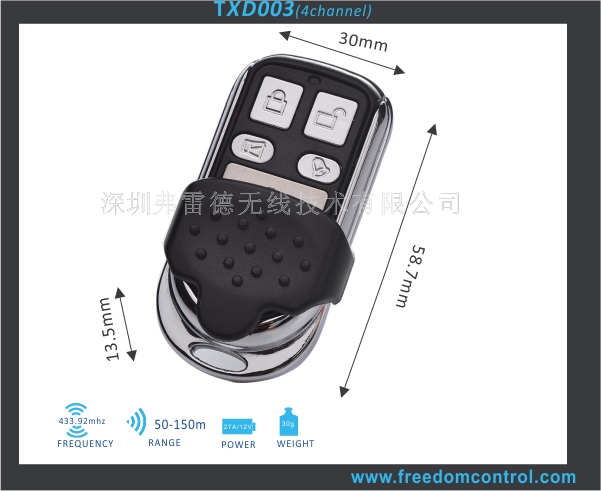

| Size | 58.7*30*13.5 |
| Weight | 31.5g |
| Package | carton,500pcs per case,carton size:48*38*26cm GW=NW+1.8KG |
The chipset compatibility:
2260(All the manufacturers)
2262(All the manufacturers)
PT2264,5326(All the manufacturers)
SC5262,HT600,HT680,HT6207,HT6010,HT6012,HT6014,SMC918 Series,527(All the manufacturers)
1527(All the manufacturers)
2240(All the manufacturers)
HCS101,HCS200\HCS201(Parts of code)
HCS300\HCS301(Parts of code)
Parts of singlechip......
the way of copy
Step:1:Clear the history code from duplicator
1:Press button A and B continuously until LED flash
2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash
3.Release button “A”,finish code clearance.
Step 2,Copy code from original transmitter
1. Put duplicator aside of original transmitter,as close as possible.
2. Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash
3. Release both buttons,finish code copy,copy other button in same way.
Return Function:
Press and hold button C and D for 3 seconds,the LED flash,ok all buttons return back to the latest copy codes.
